xDIVA(extreme Debugging Information Visualization Assistant), a 3D debugging visualization tool, provides a platform by which visualization metaphors are interactive, composable and decoupled form data, i.e. a complicated visualization can be composed and assembled from basic ones, each of which is independently replaceable. Based on le progress of xDIVA, this tool demo paper describes an automatic animation system to generate interpolated frames between key frames, where key frames are snapshots of the 3D scene at breakpoints. This approach does not require users to add or write any animation code and is more feasible for practical use.
We use simple VPL(Visual Programming Language) to construct relationship between data structure of your program and visual objects.

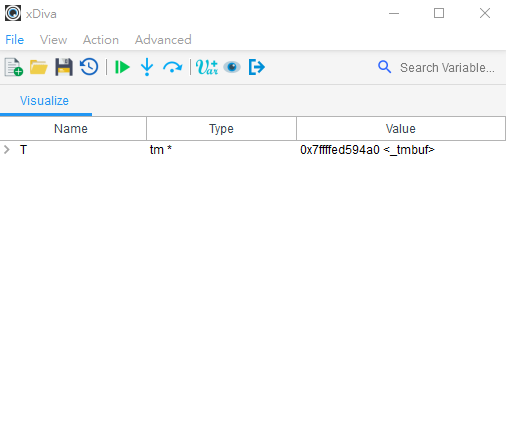

In watch window, you can see variables, unfold them or map their type to a visual object.

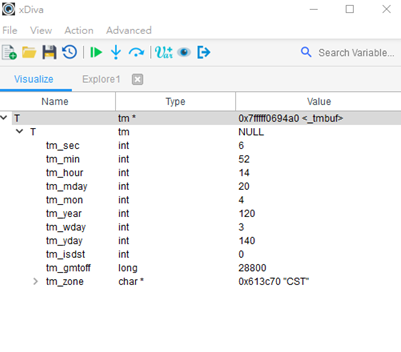

With variable explorer, You can simply explorer lots of variables and visualize them.
